Digital Mid-Mast View

Stoneridge's Digital Mid-Mast View is an invaluable addition to modern warehouse operations. This advanced high-definition camera system not only provides improved visibility for the driver but also promotes safety, efficiency, and cost-effectiveness. By equipping operators with precision and confidence, Digital Mid-Mast View contributes to seamless and productive warehouse processes.

Digital Mid-Mast View

Digital Mid-Mast View is specifically designed for forklifts and reach trucks and offers operators a crystal-clear view of the working area without the need for drilling or welding on the forks. By installing a camera at the mid-point along the mast of the forklift, this system significantly improves visibility and safety during lifting operations, especially when the mast is partially or fully extended. This allows the driver to position the truck more accurately, reducing the risk of accidents and damage to the forklift or goods.

EMOS camera

Input Voltage
12V/24V/DC

Connector
M12 X-coded Ethernet 8-pin male

Cable
0.5m Ethernet cable

Vibration Resistance
50G

Protection Class
Waterproof IP67, IP69K

Operating Temperature
-40ºC to +85ºC
-40ºF to +185ºF

Housing
Anodized Aluminum & High impact automotive synthetic thermoplastic polymer

Weight
0.24kg (incl. cable and holder)

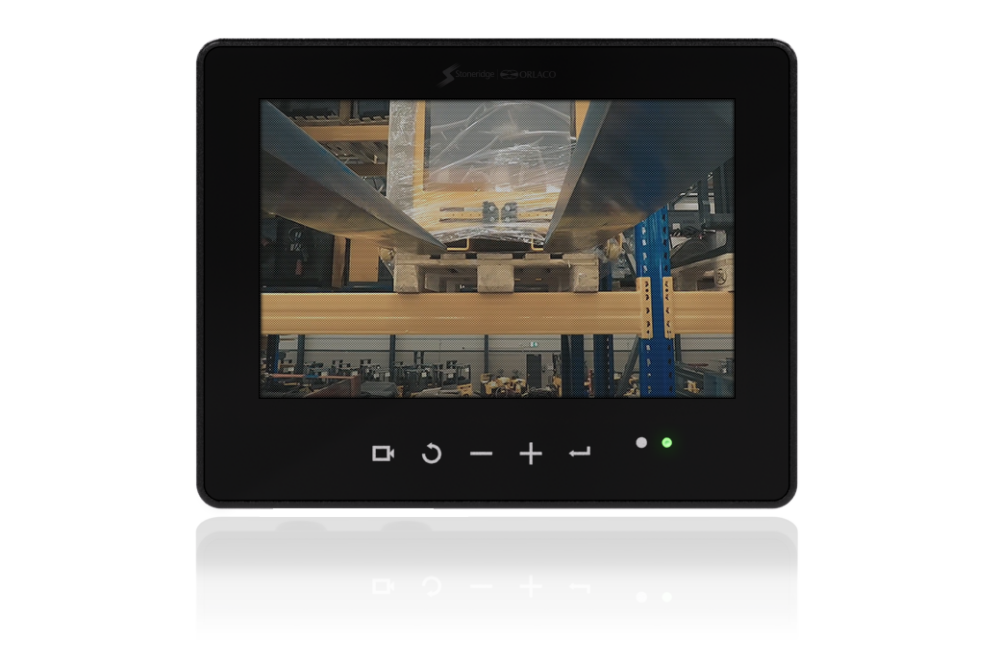

ELED Monitor

Input Voltage
12V/24V/DC

Connector
Orlaco M16 8-pin (power) + M12 D-coded female (camera input)

Cable
2m power multicable

Protection Class
IP65 (IEC 60529), IP69K (DIN 40050-9)

Operating Temperature
-30ºC to +70ºC
-22ºF to +158ºF

Housing
High impact automotive thermoplastic

Weight
0.82kg (incl. cable)

Dimensions
194.6mm x 152.3mm x 30.9mm

Features
Optically bonded panel (display) with touchpads

Cable

Connector
Orlaco 8-pin M12 X-coded female - Orlaco 8-pin M12 X-coded male

Protection Class
Waterproof IP67

Operating Temperature
-40ºC to +85ºC
-40ºF to +185ºF

Request a quote

Alternative solutions

In addition to Digital Mid-Mast View, Stoneridge offers various alternative visibility systems for forklifts. Depending on the application, the driver's preference, and the type of forklift, choices include View-on-Forks, ForkView, or Mid-Mast View (analog).

Reliable digital system

The Digital Mid-Mast View camera system is a combination of an EMOS camera and an ELED monitor, connected with a dynamic ethernet cable. The ergonomically placed monitor enables the driver to view in a natural and comfortable manner. This reduces strain on neck and shoulder muscles, lowers the risk of sickness absence, and increases productivity. With its waterproof and shock-resistant housing, the system performs reliably under extreme conditions and temperatures from -40°C to +85°C.

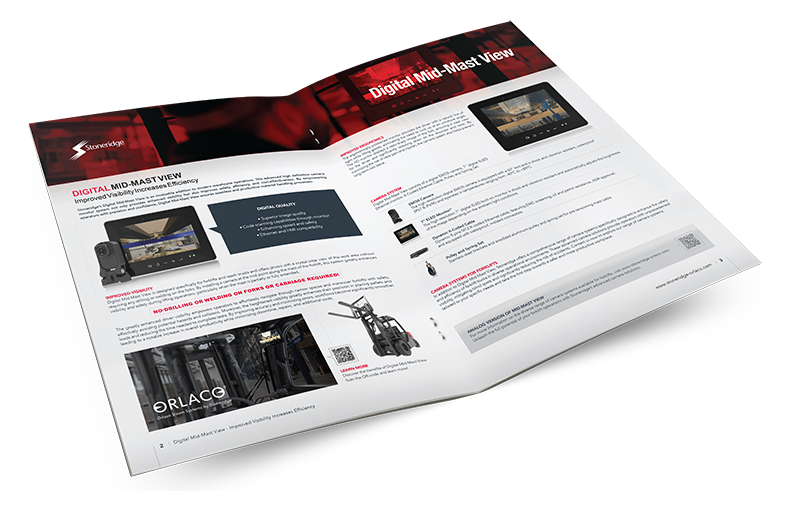

Download folder

Unleash the full potential of your forklift operations with Stoneridge's advanced camera solutions. Contact us for more information about the Digital Mid-Mast View camera monitor system or our wide range of camera systems designed for forklifts.

Download

Find a dealer!

Find our Orlaco dealers in over 35 countries worldwide. They are there to support you!

This system is suited for

Forklifts

Is Stoneridge ISO certified?

Yes, Stoneridge (location Barneveld) is ISO certified. You can find all our certificates on the 'Certificates' page.

View certificates

Do the camera systems meet safety and quality standards?

To ensure reliability and quality, our products undergo extensive testing and our production processes are strictly controlled. In addition to ISO 9001 and ISO 14001 certifications, Stoneridge has also implemented IATF 16949:2016. You can find all our certificates on the 'Certificates' page.

View certificates

Where can I find your (product) certifications?

You can find our certificates on the 'Certificates' page.

View certificates
